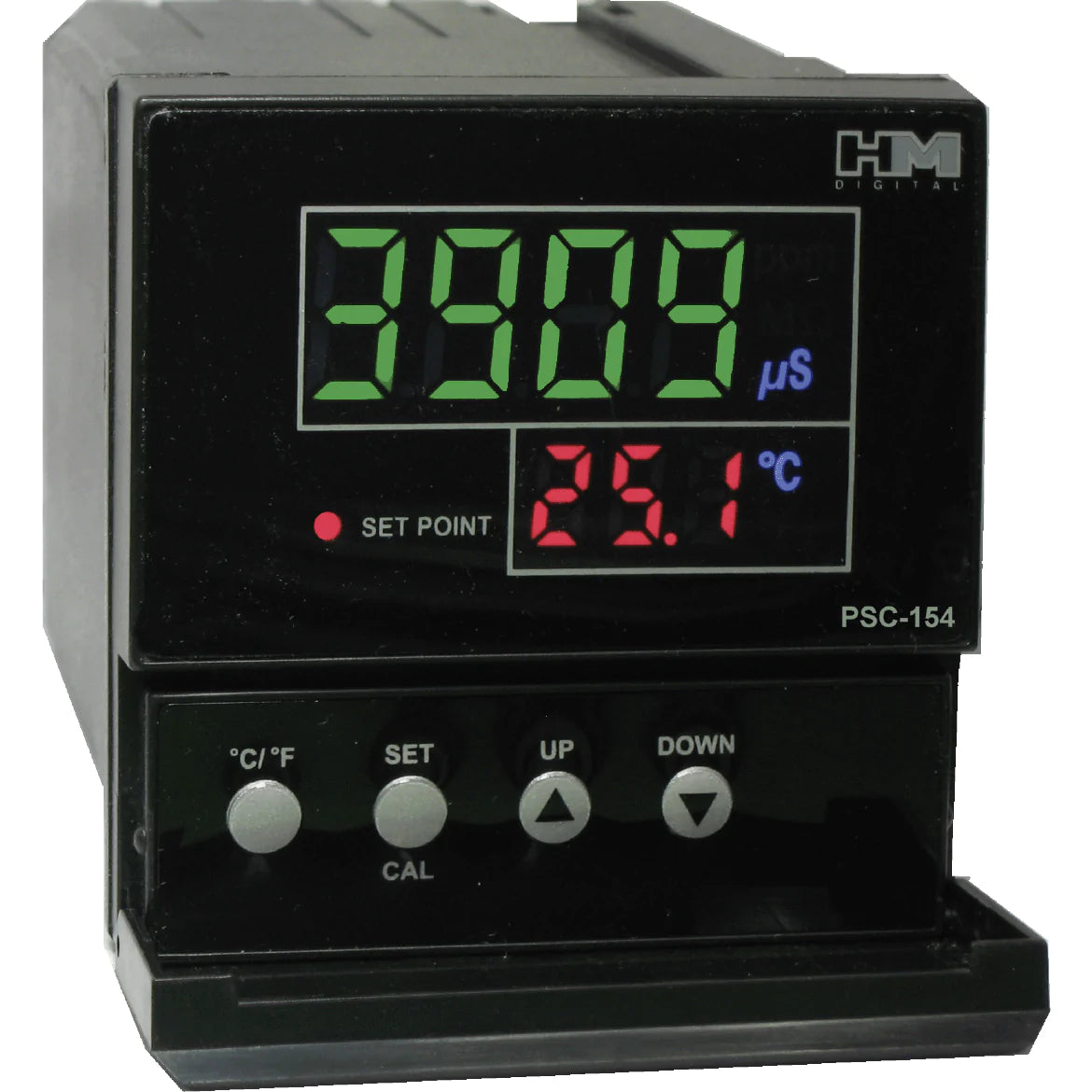

HM Digital PSC-154 TDS/EC Controller with 4-20mA Output, 0-9999 µS Measurement Range, 0.1 µS/ppm Resolution, +/-2% Readout Accuracy

HM Digital PSC-154 TDS/EC Controller with 4-20mA Output, 0-9999 µS Measurement Range, 0.1 µS/ppm Resolution, +/-2% Readout Accuracy

Regular price $170.00 USD
Sale price $170.00 USD Regular price $259.99 USD
Sale Sold out
$259.99
Shipping calculated at checkout.

Hm Digital Psc-154 Tds/Ec Controller 4-20ma Output Ppm Conductivity Monitor is a 4-20mA TDS/EC controller designed to maintain optimal TDS/EC levels in commercial high-performance systems. It features an extended measuring range, digital calibration, an on-screen temperature display, a tri-color display, and a 4-20mA output.

Built-in sensor for automatic temperature compensation (ATC) guarantees accurate measurements at different temperatures. A bright 5/8" L.E.D. display makes it easy to see the reading measurements.

FEATURES:

- Large and bright LED display.

- 4-20mA output signal can be connected to PLC to record values.

- An alarm will sound if the TDS/EC level exceeds the user set level.

- A given point controls the device switch.

- The screen display shows the temperature (C/F).

- The kit includes one sensor probe (part #SP-1-PSC).

PRODUCT DESCRIPTION:

- EC range: 0-9999 µS

- TDS range: 0 – 5000 ppm

- Temperature range: 1-75°C; 33-167°F

- Accuracy: ±2% (of reading)

- Conversion factor: NaCl (average value 0.5)

- Resolution: 0.1 µS/ppm (0-999); 1 µS/ppm (1000-9999)

- ATC: Yes (1 – 65°C)

- Calibration: Digital via push button

- Setting the control point: One point controlled by the up/down buttons on the screen (any point in the range)

- Relay control: The unit will open or close the contact when the preset ppm/µS level is reached or exceeded (simple switching). It can be used to control a pump, solenoid valve, or other device.

- Relay voltage: 5V

- Output signal: 4-20mA

- Output Accuracy (mA): ±1%

- Alarm: Constant beep (user configurable)

- Display: Bright 5/8" LED display.

- Probe: 1/2" threaded hole (NPT), 3 meters (9.8 feet) shielded cable

- Power supply: AC 110V / AC 220V

- Dimensions: 7.2 x 7.2 x 11.1 cm (2.8 x 2.8 x 4.4 inches)

- Monitor weight: 241 g (8.5 oz)

- Total weight (delivered): 610 g (1 lb 5.5 oz)

Hm Digital Psc-154 Tds/Ec Controller is a reliable controller that will help you monitor and maintain optimal TDS/EC levels in your commercial system. Thanks to its features, you can quickly check measurements and adjust the control level using a switch and set point.
